Vontron 40" Ultra Low Pressure RO Membrane

Calculate Shipping

Pick-up from Shop - $0.00
9 Edward Street, Turrella NSW. Mon-Thu 9-5 & Fri 9-4

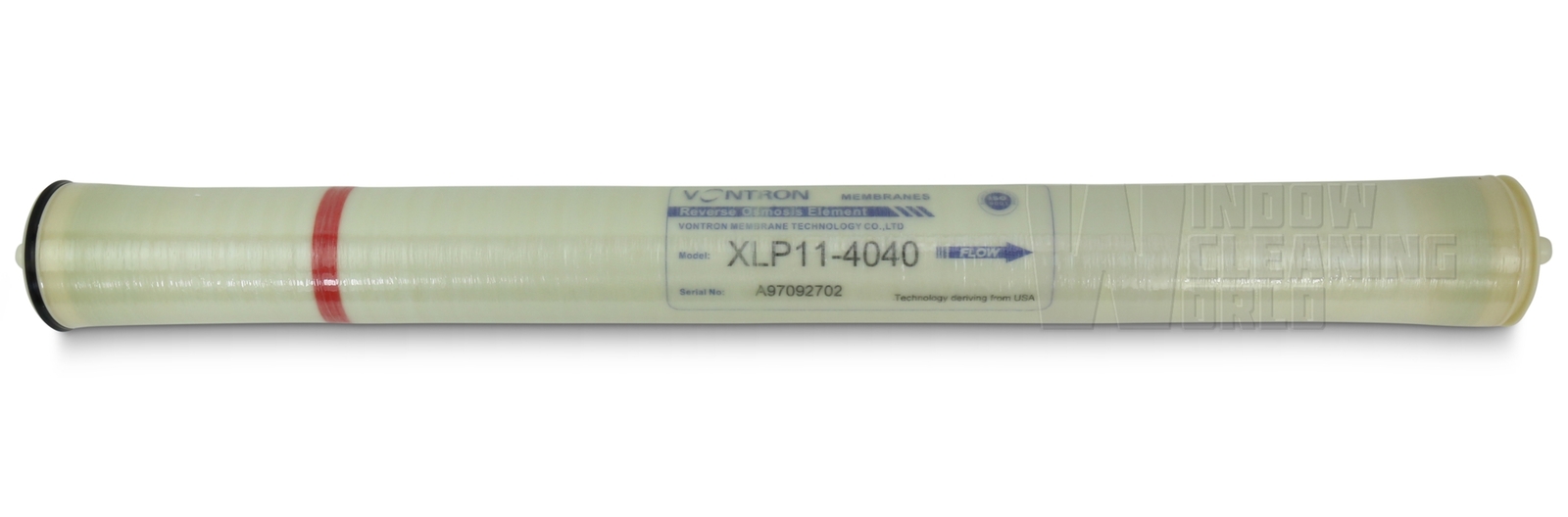

4in x 40in RO Membrane

Replacement membrane for the X-ION MAX RO and X-ION Lite RO
Fits 4in x 40in RO Housing
Testing pressure (optimal pressure) is 100psi
Average pure water production 5.28 ltr/min
98% rejection rate

(EWPROXLP11-4040)

Specifications

Reverse Osmosis Membrane

Vontron ULP21-4040 ultra low pressure RO membrane delivers high permeate flows and salt rejection at lower raw water pressures, compared to regular low-pressure membrane elements. The high salt rejection and low working pressure result in up to 30% lower energy consumption compared to standard elements.

Vontron ULP 4040 series of low pressure RO membrane element are based on a 10.3 bar (150 PSI) test pressure.

Product Specifications:

Salt Rejection: 99%*
Permeate Flow: 2400 gpd (9.1 m³/day)*
Membrane Area: 90 ft².
Diameter / Length: 4 inch / 40 inch.
*Test conditions: 1500 mg/l NaCl, 10.3 bar (150 psi), 25 °C (77 °F), pH 7.5, recovery rate 8%.
*Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5 mic cartridge fitler ...etc).

Vontron ULP 4040 commercial reverse osmosis membrane is suitable for water purification applications of water sources with salt concentration lower than 2000 ppm, such as surface water, underground water, tap water and municipal water.

Operation Conditions:

Max. working pressure: 600 psi (4.14MPa)
Max. Feed water flow: 16 gpm (3.6 m3/h)
Max. Temperature of Feed water: 45℃
Max. Feed water SDI15: 5.
Max. Feed Water Total Hardness: 10 ppm (softener or antiscalant should be used).
pH Range of Feed water during Continuous Operation: 3～10
pH Range of Feed Water during Chemical Cleaning: 2～12
Residual chlorine Concentration of feed water ＜0.1ppm Max.
Pressure drop of single membrane element: 15psi (0.1MPa)

SKU	EWPROXLP11-4040
Brand	Vontron
Shipping Weight	3.8200kg
Shipping Width	0.120m
Shipping Height	0.120m
Shipping Length	1.080m
Shipping Cubic	0.015552000m3
