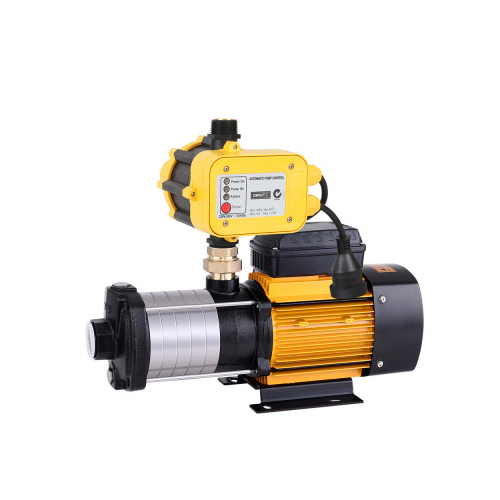

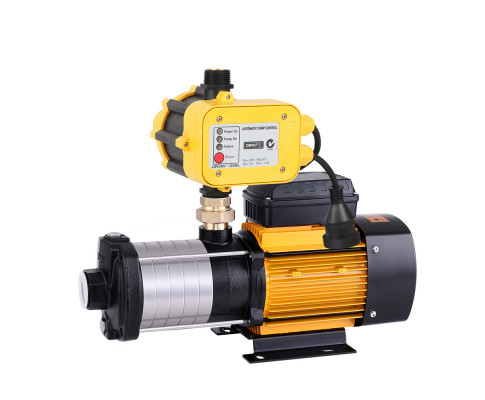

Replacement pump for NWC 240v softwash skids.

Powerful 2500W self-priming multi-stage pump
100% duty cycle – designed for continuous operation
Rust-resistant stainless steel pump body with cast iron ends
Fully automatic operation on/off controller
Huge 70m head
Anti-corrosive alloy motor housing, ceramic and carbon seals
Built-in thermal protection
Efficient cooling system
Highly conductive copper motor
Corrosion-resistant brass connector
Leak proof rubber ring
Easy connecting plug and cable
Fully automatic pressure controller
Adjustable start-up pressure
Australian standard cable and plug

Specifications:
Pump:
MAX power: 2500W, 3.5hp
Plug and cord: SAA 250V/10A *0.3m
Max pump flow: 12,000L/h (200L/min)
Max head: 70m
Duty cycle: Continuous
Impeller Stainless steel
Pump body: Stainless steel
Motor shaft: Stainless steel
Inlet diameter: 1.25” (30mm)
Outlet diameter: 1” (25mm)
Brass connector: 1”
Protection class: IP44
Insulation class: B (130°C)
Max ambient temperature: 40°C
Max liquid temperature: 60°C
Controller:
Voltage: 220/240V
Frequency: 50/60Hz
Maximum current: 10A
Maximum water temperature: 60°C
Maximum pressure for use: 10bar
Protection grade: IP65
Inlet and outlet size: 1‘’(25mm)
Dimensions: 22cm x 12.4cm x 17cm
Colour: Yellow

Package Contents:
6-stage Water Pumpx 1
Pump Controllerx 1
User manualx1
