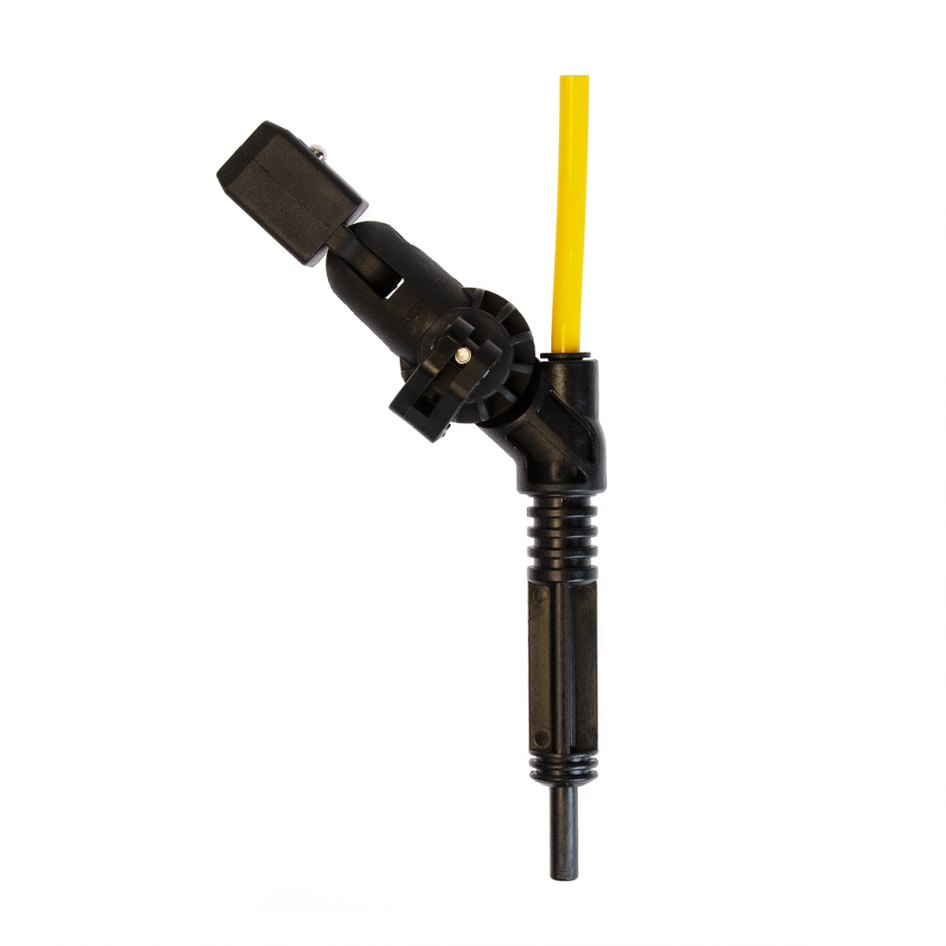

Gardiner Quick-LoQ Angle Adapter Type 1 Swivel

Calculate Shipping

Pick-up from Store - $0.00
Pick-up from 99 Chapel Street, Marrickville in Sydney. Please call (02) 8005 4200 before you come in so your order can be ready by the time you arrive. Open 9am-5pm Monday to Friday.

Gardiner Quick-LoQ Angle Adapter Type 1 - Swivel

Brand new Gooseneck System
Easy push button operation
Ideal when cleaning off to the side when obstacles on the ground prevent you from being square to the window
Brush will always be square
Offers ease of use and maximum adaptability
Very ergonomic operation

(GDQLRN1S)

Be The First To Review This Product!

Help other Window Cleaning World users shop smarter by writing reviews for products you have purchased.

Write a product review

We Also Recommend

Control Flow With 2 Valves

Claber Double Tap Adaptor

Run 2 Systems From 1 Tap

$10.00 EX GST

Claber Double Tap Adaptor

Run 2 Systems From 1 Tap

$10.00 EX GST

Others Also Bought

Fits all Ettore Poles

Ettore Pro Grip fixed T-Bar

14" - 22" (35cm - 55cm)

From $20.50 EX GST

Ready to Plug Into Your Hose

Gardiner Super-Lite Brush Dual-Trim Medium Mixed

10" (25cm)

$64.50 EX GST

Gardiner Super-Lite Brush Dual-Trim Medium Mixed

10" (25cm)

SKU: GDBSLDTM

Brand: Gardiner Pole Systems

Ready to Plug Into Your Hose

Gardiner Quick-LoQ Goosneck Valve

All New Design - Version 2 - redesigned by Gardiner
Gardiner Gooseneck Valve with Patented Inner Valve Technology
"Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
Twist on at the top LH corner of the window and Twist off on the bottom RH corner
Adjustable Tension Control to allow for different brush sizes and pole heights
Maximum recommended pole height - 50ft
Can be operated with your hand for use on ground floor windows
Improves speed of water control compared to a manual valve
Fitting Instructions
Remove old gooseneck from the pole
Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
How to Operate
Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
Move to the next window and repeat
Troubleshooting
Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
