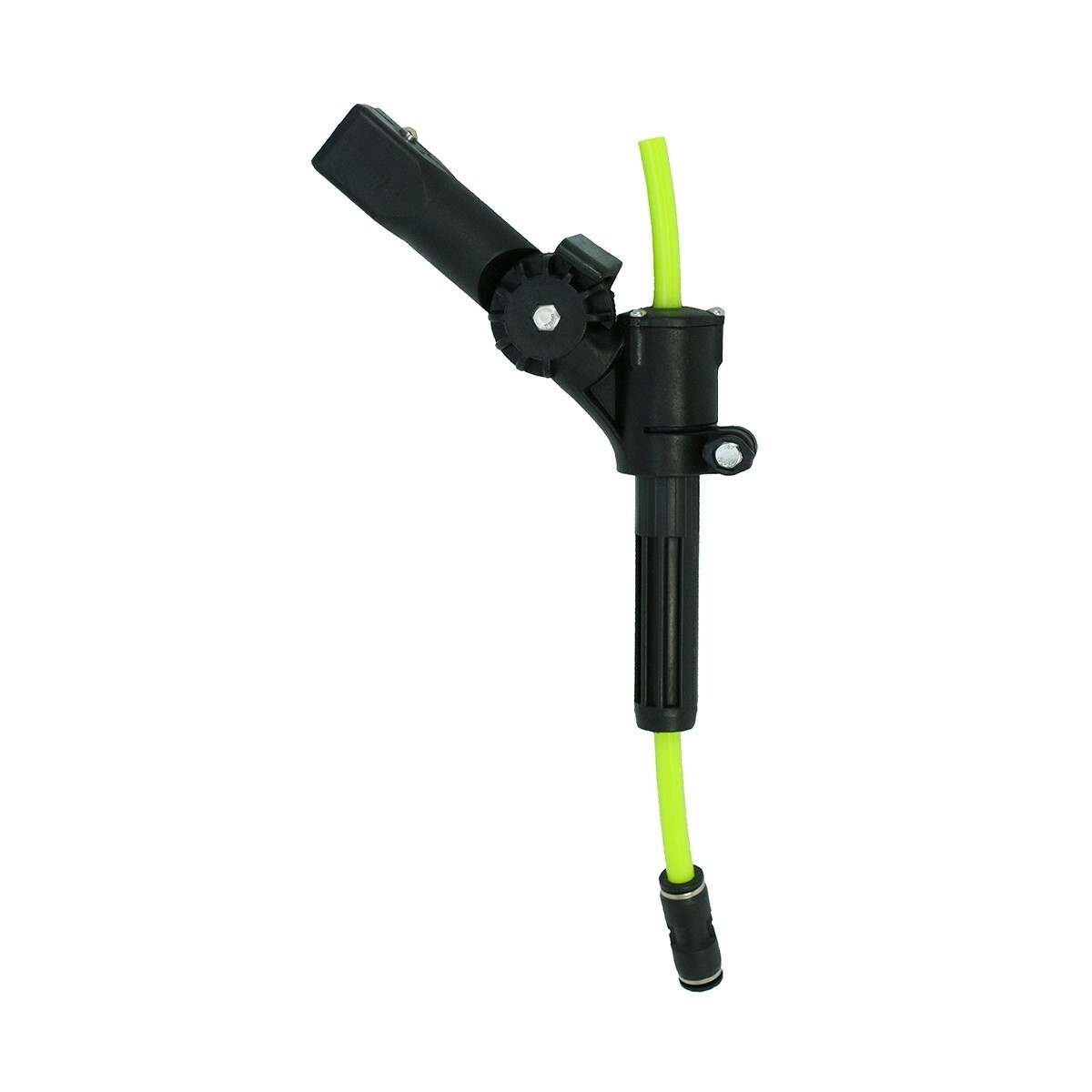

Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
(GDQLGNV)
Be The First To Review This Product!
Help other Window Cleaning World users shop smarter by writing reviews for products you have purchased.
We Also Recommend
Claber Double Tap Adaptor
Run 2 Systems From 1 Tap
SKU: CLDTA
Brand: Claber
Control Flow With 2 Valves
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$12.00
You May Also Like
Claber Double Tap Adaptor
Run 2 Systems From 1 Tap
SKU: CLDTA
Brand: Claber
Control Flow With 2 Valves
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$12.00
Others Also Bought
Steel Wool - Ultra Fine Grade 0000
300g pack (12 pads)
SKU: SWABC0000
Brand: Sifa
Use on Glass & Frames for Stubborn Stains
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$16.95
Sorbo Washer Sleeve with Scrubber
One Side is a Scrubber
SKU: SBWSSC
Brand: Sorbo
Apply Less Scrubbing Effort
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
From $28.90
Gardiner Super-Lite Medium Mixed Brush - 10in
All-Rounder Water-Fed Brush
SKU: GDBSLDTM
Brand: Gardiner Pole Systems
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$64.00
Gardiner Quick-LoQ Brush Pole Tip Type 1
Pole Insert to Brush Quick-LoQ
SKU: GDQLRN1
Brand: Gardiner Pole Systems
Wagtail Mop Extractor
- Extractor holds tools upright inside the bucket
- Removes excess water from mops and applicators
- Bucket Clip keeps bucket handle upright
- Needs the Wagtail Bucket Clip
- Use one Bucket Clip to mount either one or two Extractors
$15.00
Gardiner Alloy Euro Thread Tip
Euro Screw Thread
SKU: GDEUROTIP
Brand: Gardiner Pole Systems
Convert Your Pole!
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$12.50
Gardiner Delrin Smart Clamp Shim
Smart Clamp Lever Shim
SKU: GDSCDS
Brand: Gardiner Pole Systems
Little Washer Piece
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$2.00
Gardiner Erkenomic Pole Tip
For Traditional Tools
SKU: GDRN1ERK
Brand: Gardiner Pole Systems
Home Owners Water-Fed Window Cleaning Package
This package will make cleaning your house a fun chore that you'll look forward to. No longer will you have to struggle with extension ladders, you can just brush the window, rinse it off, and have a spot-free finish with no need to use a squeegee. The DI tank contains 4L of resin, which takes the salts and solids out of the water so that you can have a spot-free finish just by brushing the window with a pole and brush. This package contains everything that you will need to clean your own windows, with limited ongoing costs.
With a water supply of around 80-100ppm, you can expect 1000L of filtered water from the 4L Di tank, or around 10 hours of window cleaning. Results will vary by location and water sources.
The resin contained in the 4L Di tank will need to be changed when the TDS exceeds 20ppm(see below video for more information on TDS, PPM, and water testing)
Kit Includes:
- Telescopic Pole: Gardiner CL-X22, 50% Carbon to reach 2-storey windows. (6.7m extended)
- Pole Tip: Gardiner Quick-LoQ Brush Pole Tip to connect the pole and brush.
- Brush: Gardiner Ultimate Nylon Brush comes ready to plug into your pole hose kit.

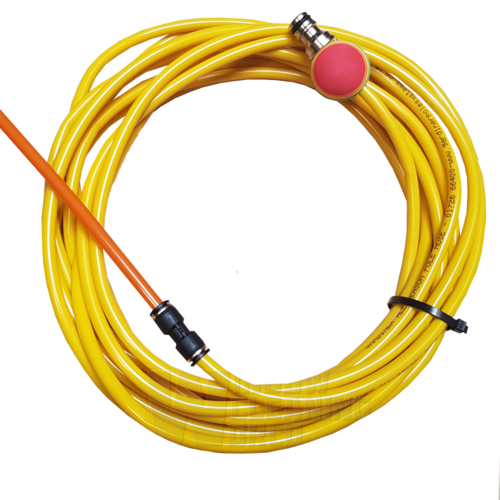

- Pole Hose: 15m Pole Hose Kit (includes valve). You can run this internally or externally to your Gardiner CL-X22 pole. (
- Pure Water Treatment System: 4L Lift & Carry DI Pure Water System comes filled with 4L of resin to get you cleaning straight away.
- Hand-Held TDS Meter: This is to check when you will need to replace the resin, which is important to avoid water spots showing on windows.
- Lead Hose: 1.5M of hose with fittings attached, comes included to connect the tank to a water source.
$15.00
More From This Category
Gardiner QuickLoQ Euro Brush Adaptor
QuickLoq to Euro Converter
SKU: GDQLEBA
Brand: Gardiner Pole Systems
Converter
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$8.50
Gardiner QuickLoQ Swivel Adapter
Instantly convert fixed angle adaptor to swivelling
SKU: GDQLSA
Brand: Gardiner Pole Systems
Quick-LoQ Swivel Adaptor
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$15.00
Gardiner Quick-LoQ Angle Adaptor Type 1 LONG ARM
Pole Insert to Quick-LoQ Brush
SKU: GDQLRN1L
Brand: Gardiner Pole Systems
6" Arm
Gardiner Quick-LoQ Goosneck Valve
- All New Design - Version 2 - redesigned by Gardiner
- Gardiner Gooseneck Valve with Patented Inner Valve Technology
- "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
- Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
- Twist on at the top LH corner of the window and Twist off on the bottom RH corner
- Adjustable Tension Control to allow for different brush sizes and pole heights
- Maximum recommended pole height - 50ft
- Can be operated with your hand for use on ground floor windows
- Improves speed of water control compared to a manual valve
-
Fitting Instructions
- Remove old gooseneck from the pole
- Take the hose coming up the pole and push-fit into the 8mm push fit connector o the base of the gooseneck valve assembly
- Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
- Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
- Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
- adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work
-
How to Operate
- Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
- When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
- Move to the next window and repeat
-
Troubleshooting
- Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
- The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
- The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
$18.50
