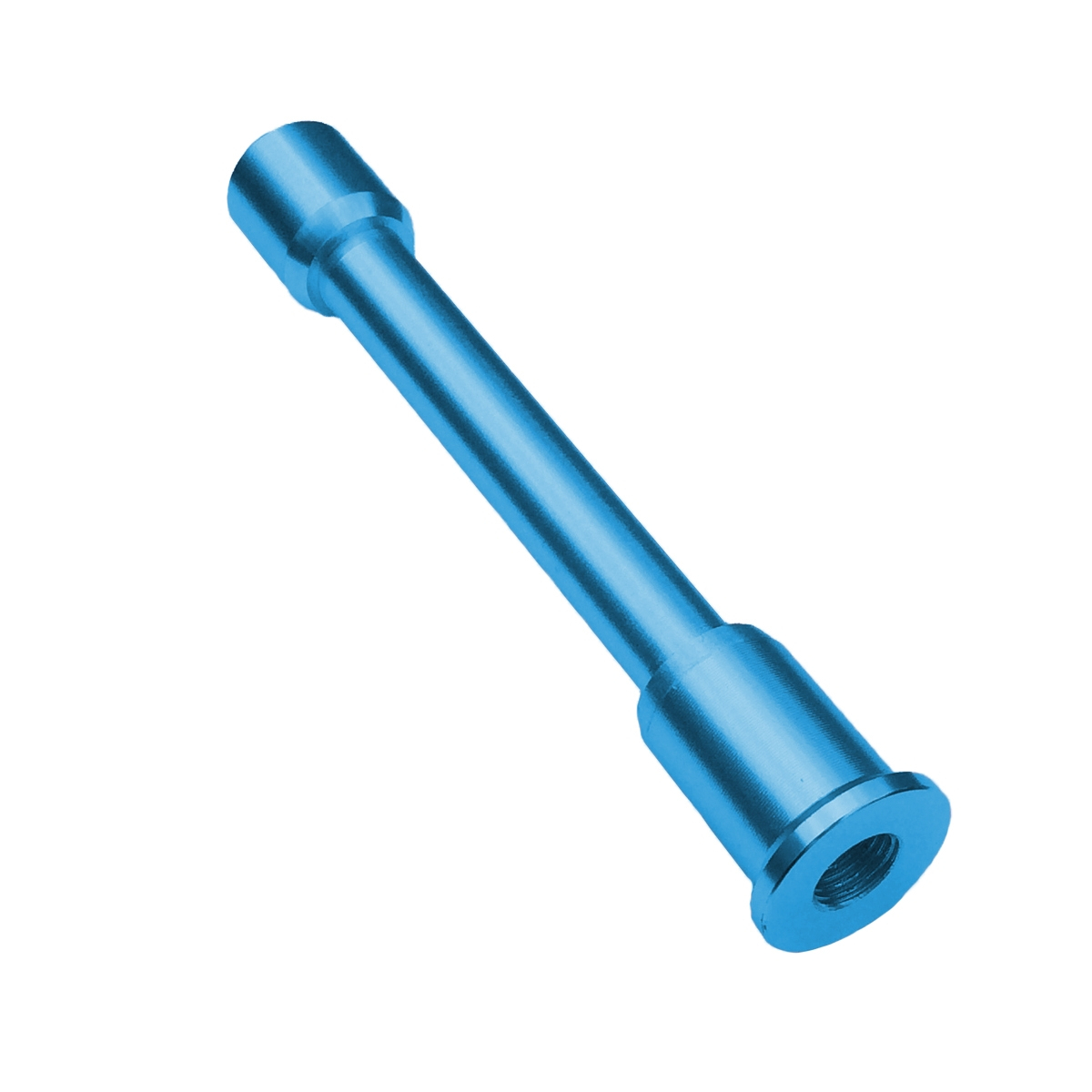

Gardiner Powerwash Pole Adaptor

• Anodized Blue Alloy Adapter
• Alloy Adapter to fit the #2 section on a Gardiner pole to allow the fitting of pressure washing and soft washing fittings and attachments
• 1/4" BSP Female top screw thread
• 1/4" BSP Female base thread
• 72g

Fitting Instructions

• Remove the #1 section from a Gardiner pole of the needed length
• Slide your high-pressure power wash hose with 1/4" Male BSP thread end up the pole and out of the #2 clamp at the top
• Connect the hose end fitting to the base thread on the adapter (it is recommended to use PTFE tape)
• Push the adapter back into the #2 clamp and close the clamp lever to hold it in place
• Now screw in the powerwash head attachment with a suitable 1/4" male thread connection
• Extend the pole to the desired height and start pressure or soft washing
